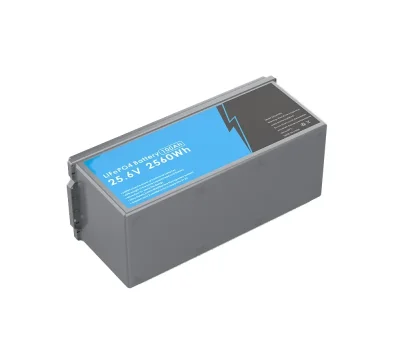

24V 100Ah Lithium Battery Conversion Kit – Dual Voltage Performance
The 24V 100Ah lead to lithium conversion kit is designed specifically for dual voltage devices, using quick disconnect terminal blocks to increase installation efficiency by three times. It comes with an intelligent charging management box that automatically identifies device charging needs. Suitable for electric forklifts, electric tricycles (dual battery system), 24V industrial robot backup power supply, small electric yacht power systems, etc.
Specification
| Model | PRL-24100A |
|---|---|
| Rated Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Energy Density | 2560Wh |
| Voltage Range | 21.6 – 28.8V |
| Charge Current | 50A |
| Maximum Continuous Charge Current | 100A |
| Cycle Life | 4000 cycles |
| Dimensions (L×W×H) | 502*187*242mm |
Certification standards and testing
IEC 62619,UN38.3, CE, UL 2271
85 ℃ high temperature and high humidity test
Vibration tested per ASTM D4169
Plus high-rate discharge
Carge recovery cycles
Application
Electric boats & small EVs
Industrial carts
24V solar battery banks
