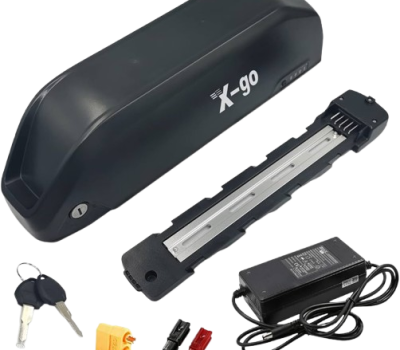

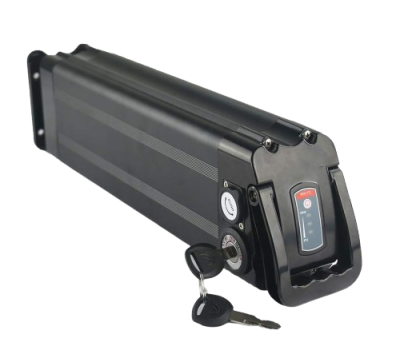

48V 13Ah High-Efficiency E-Bike Battery
48V 13Ah electric two-wheeled tricycle battery, with high energy density, can store more electricity in the same volume, extend the vehicle’s range, and has an intelligent temperature management function, which can maintain good performance in different temperature environments; Optimized battery management system for precise monitoring of battery status.
Specification
| Model | Kirin Model |
|---|---|
| PRL-48V13Ah | |
| Material System | NCM 18650-2600mAh-3C |
| Nominal Voltage | 48V |
| Nominal Capacity | 13Ah |
| Cell Configuration | 13S5P |
| Charging Voltage | 54.6V |
| Max Charging Current | 5A |
| Max Continuous Discharge Current | 18A |
| Operating Voltage Range | 36.4V~54.6V |
| Charging Temperature | 0~55°C |
| Discharging Temperature | -20~65°C |
| Storage Temperature | -20~45°C |
| Dimensions | 526*104*77.5mm |
| Cycle Life | 500 cycles (>70% capacity retention) |
| Communication | None |
| Certifications | UN38.3/CE |
Certification standards and testing
UN38.3, MSDS, CE certified.
IPX4 waterproof
45°C accelerated aging test
Salt spray test
Insulation resistance test
Thermal runaway test
Application
Commuter e-bikes
Food delivery e-bikes
Off-road light trail bikes
