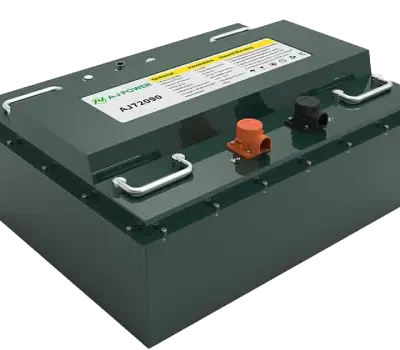

51.2V 100Ah Battery for Sightseeing Shuttles
51.2V 100Ah golf sightseeing car battery built with advanced electrode materials for superior charge and discharge efficiency. It features an active balancing system that maintains equal performance across all battery cells, making it ideal for long-distance golf carts and sightseeing vehicles in large tourist resorts.
Specification
| Model | PRL-F48-100A |
|---|---|
| Chemistry | LiFePO4 105Ah Prismatic Cell |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Series/Parallel Configuration | 16S1P |
| Charge Voltage | 57.6V |
| Max Charge Current | 25A |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 120A (5S) |
| Operating Voltage Range | 44V to 58.4V |
| Charge Temperature Range | 0°C to 55°C |
| Discharge Temperature Range | -20°C to 65°C |
| Storage Temperature | -20°C to 40°C |
| Dimensions (L×W×H) | L422mm ×W 304mm × H220.5mm |
| Cycle Life | Cell: 2000 cycles, capacity retention ≥80% Battery Pack: 1200 cycles, capacity retention ≥70% |
| Communication & Certifications | Communication: Supports RS-485 Communication Certifications: Customizable per client requirements |
Certification standards and testing
UN38.3, UL 2271, CE certified
High current discharge test
thermal imaging inspection
Application
Tourist sightseeing buses (6–8 seats)
Park and scenic area transport
Electric tour vehicles
