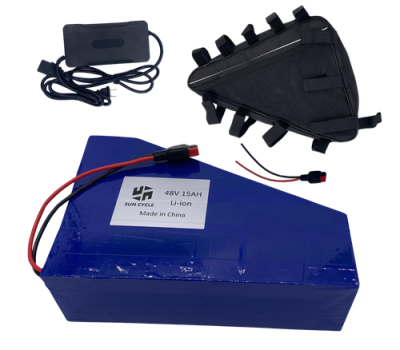

48V 15Ah Battery for Mountain and Cargo E-Bikes
48V 15Ah high-capacity battery, with advanced electrode materials, specially designed for electric two-wheeled tricycles that require long endurance, with a cycle life of over 1000 times and a long service life; fast charging function.
Specification
| Model | Sea Dragon Model |
|---|---|
| PRL-48V15Ah | |
| Material System | NCM 18650-2600mAh-3C |
| Nominal Voltage | 48V |
| Nominal Capacity | 15Ah |
| Cell Configuration | 13S6P |
| Charging Voltage | 54.6V |
| Max Charging Current | 5A |
| Max Continuous Discharge Current | 18A |
| Operating Voltage Range | 36.4V~54.6V |
| Charging Temperature | 0~55°C |
| Discharging Temperature | -20~65°C |
| Storage Temperature | -20~45°C |
| Dimensions | 367*122*95mm |
| Cycle Life | 500 cycles (>70% capacity retention) |
| Communication | None |
| Certifications | UN38.3/CE |
Certification standards and testing
EN 15194, CE, UL 2271
Salt spray corrosion test
Vibration test as per ASTM D4169
High altitude simulation test
Overcharge and over discharge limit test
High current discharge test
Application
Scenic area sightseeing tricycle
Long distance commuting electric two wheeled vehicle
Electric cargo bikes
Mountain e-bikes
Food and goods delivery bikes
