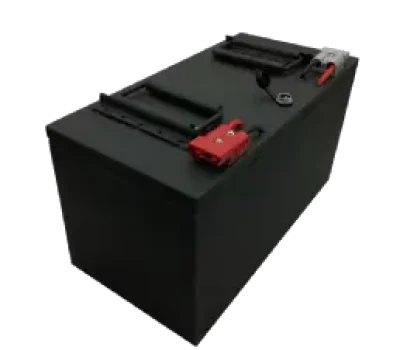

96V 110Ah Lithium Battery for Multi-Passenger Sightseeing Vehicles
The 96V 110Ah ultra high-capacity battery is designed for extended use and long service life, ideal for large golf resort carts and long-distance sightseeing buses in major tourist destinations. It features an intelligent anti-theft alarm and a smart battery management system with remote monitoring and fault diagnostics, enabling easy centralized control and maintenance.
Specification
| Model | PRL-96V110Ah |
|---|---|
| Voltage/Capacity | 96V 110Ah |
| Configuration | 30S1P (30 Series, 1 Parallel) |
| Dimensions (L×W×H) | 780×400×250 mm |
| Weight | Approx. 85 kg |
| Continuous Current | 150A |
| Peak Current | 200A (30S) |
| Communication Protocol | CAN2.0 |
| Applications | Golf Carts / Sightseeing Vehicles / Industrial Equipment |
| Protection Rating | IP65 |
| Cooling Method | Natural Cooling |
| Heating Function | No |
Certification standards and testing
UN38.3, UL 2271, ISO 12405-3
Charge discharge cycle test
accelerated life testing
Mechanical shock
Salt mist corrosion test
Cell thermal stability test
Regenerative braking simulation testing
